Our Control Panel Range

11 panel types engineered for industrial, commercial, and government applications — custom-built, tested, and commissioned by Voltex.

Filter:

Showing 11 of 11 panels

CT Meter Panel manufactured by Voltex Electricals Pune METERING

CT Meter Panel

Current Transformer Metering Panel for accurate measurement and monitoring of electrical parameters — voltage, current, power factor, energy consumption — at the incoming supply point. Essential for MSEDCL metering compliance, energy audits, and billing in industrial and commercial installations.

CT / PT Metering Energy Meter MSEDCL Compliant Withdrawable Module
Voltage Rating415V / 3Ph / 4W / 50Hz
CT RatioAs per connected load (50/5 to 2000/5A)
MeteringMultifunction Energy Meter (MFM)
ParametersV, A, kW, kVA, kVAR, PF, kWh, kVAh
CT ClassClass 0.5 / Class 1 (revenue grade)
BusbarCopper — tinned / painted
EnclosureIP42 / IP54, free-standing with MS frame
StandardIS 8623 / MSEDCL metering specs
Enquire Now
PCC Panel manufactured by Voltex Electricals Pune POWER

PCC Panel

Power Control Centre panel serves as the main incomer distribution board, receiving power from the transformer or utility and distributing it to outgoing feeders, MCCs, and sub-distribution boards. Built with ACBs and busbars rated for high fault levels in industrial environments.

Up to 6300A ACB / MCCB Draw-out Type Bus-bar Chamber
Voltage Rating415V / 3Ph / 50Hz
Current RatingUp to 6300A
IncomerACB with motorised operation
BusbarCopper / Aluminium — tinned
ProtectionOverload, Short Circuit, Earth Fault
MeteringMFM — V, A, kW, PF, kWh
EnclosureIP42 / IP54, free-standing MS
StandardIS 8623 / IEC 61439
Enquire Now
APFC Panel manufactured by Voltex Electricals Pune POWER FACTOR

APFC Panel

Automatic Power Factor Correction panel improves power factor to near unity, eliminates MSEDCL penalty charges, and reduces maximum demand — delivering significant energy cost savings.

Auto PF Correction Capacitor Bank Detuned Reactor Energy Saving
Voltage Rating415V / 3Ph / 50Hz
Capacitor Range25 KVAR to 1000 KVAR
ControllerAutomatic PF Controller (6/8/12 Step)
Target PF0.95 – 0.99 lagging
Capacitor TypeMPP / APP (Self-healing)
Detuned Reactor5.67% / 7% (optional)
StandardIS 13340 / IEC 60831
Enquire Now

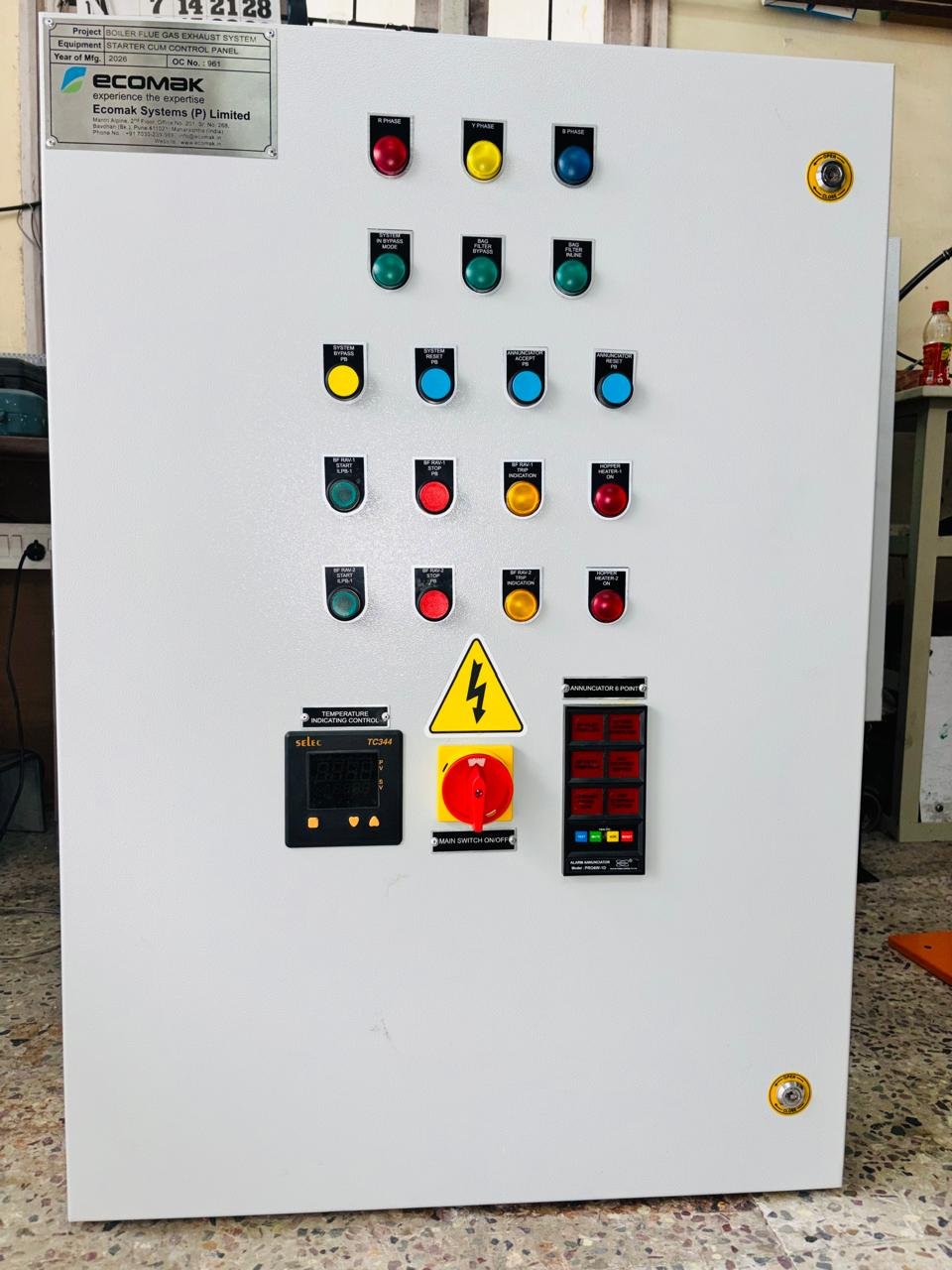

Starter Panel by Voltex Electricals Pune STARTER

Starter Panel

Motor Starter Panel provides controlled starting, stopping, and protection for individual or multiple motors. Available with DOL (Direct-On-Line), Star-Delta, Auto-Transformer, and Soft Starter configurations — suitable for pumps, compressors, fans, conveyors, and industrial machinery of all capacities.

DOL / Star-Delta Auto-Transformer Soft Starter Phase Failure Relay
Voltage Rating415V / 3Ph / 50Hz
Motor Capacity0.5 HP to 500 HP
Starter TypesDOL, Star-Delta, ATL, Soft Starter
Contactor MakeSchneider / L&T / Siemens / ABB
ProtectionOverload relay, Phase failure, Short circuit
IndicationRun / Trip / Off pilot lamps
EnclosureIP42 / IP54, wall-mount or free-standing
StandardIS 8623 / IEC 60947
Enquire Now

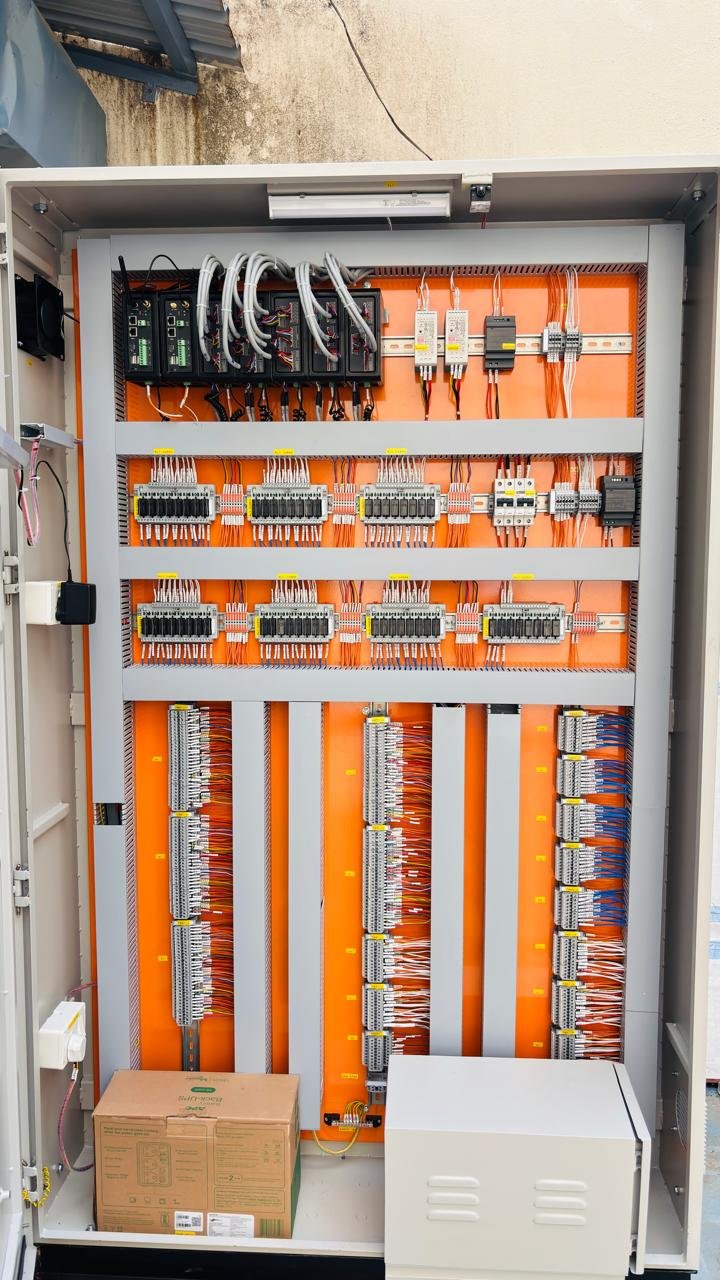

Process Control PLC Panel by Voltex Electricals Pune PLC

PLC Panel

Programmable Logic Controller panels for industrial process automation, sequence control, and SCADA/HMI integration. Customised ladder logic programming as per client process.

SCADA Ready HMI Interface Modbus / Profibus Remote I/O
PLC BrandsSiemens / Allen Bradley / Mitsubishi / Delta
I/O Range8 I/O to 1000+ I/O (modular)
CommunicationModbus RTU/TCP, Profibus, Ethernet/IP
HMI5" to 21" touchscreen (optional)
Power Supply24VDC SMPS inside panel
ProgrammingLadder, FBD, SFC as required
EnclosureIP42 / IP54 / IP65
Enquire Now

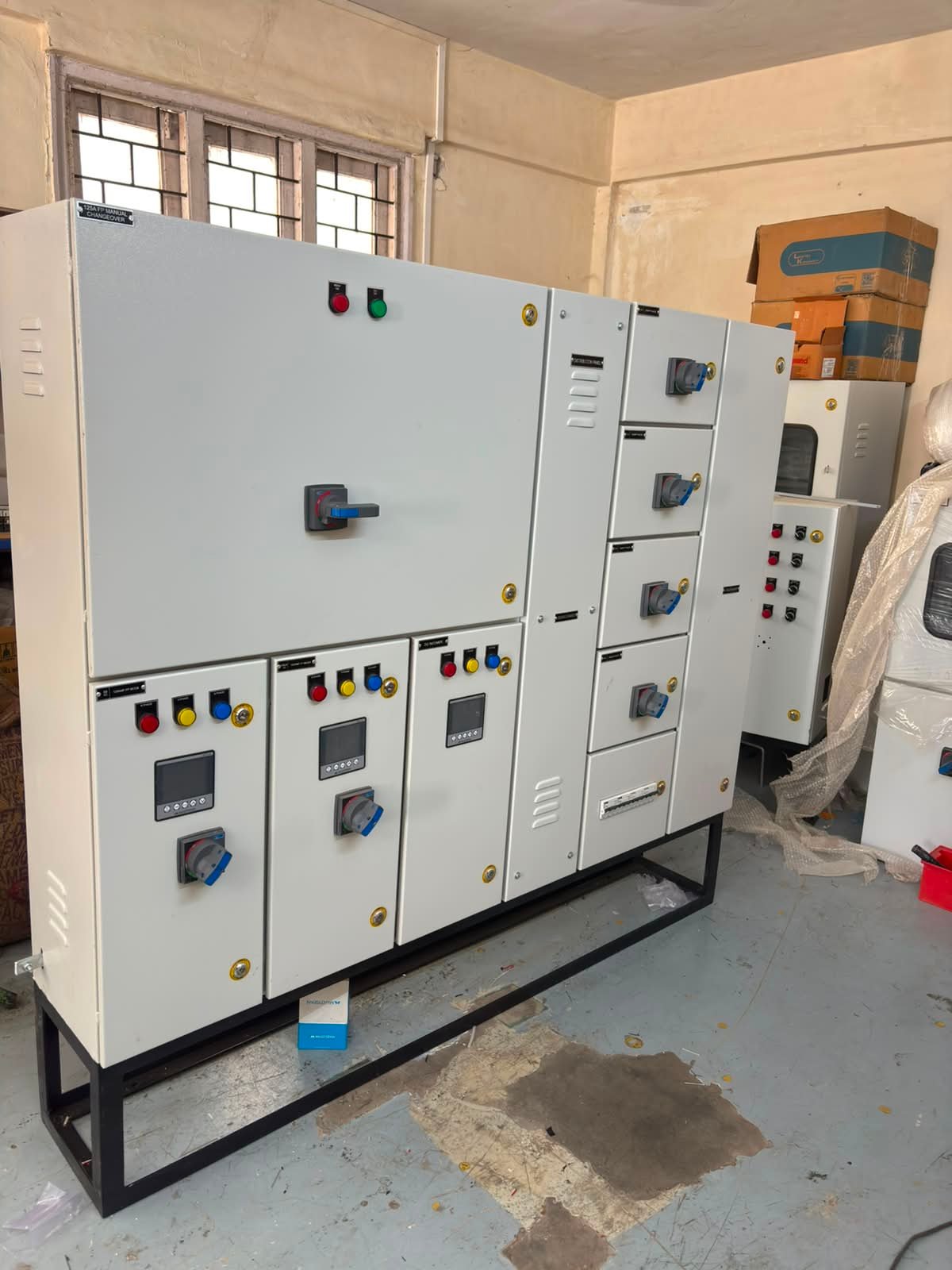

Changeover Panel by Voltex Electricals Pune CHANGEOVER

Changeover Panel

Changeover Panel enables safe and reliable switching of power supply between the mains (MSEDCL) and DG set — either manually or automatically. Prevents simultaneous connection of both sources, protecting equipment and personnel. Available as Manual Changeover (MCO) or Automatic Mains Failure (AMF) type with adjustable timers and phase monitoring.

Manual / Auto Mains ↔ DG Switch Phase Monitoring Interlocking
Voltage Rating415V / 3Ph / 50Hz
Current Rating32A to 3200A
Switch TypeMCCB / ACB with mechanical interlock
OperationManual (MCO) / Automatic (AMF)
Transfer TimeAdjustable — 5 to 30 seconds
ProtectionOvervoltage, Undervoltage, Phase Failure
DG Capacity5 kVA to 2000 kVA
StandardIS 8623 / IEC 60947
Enquire Now

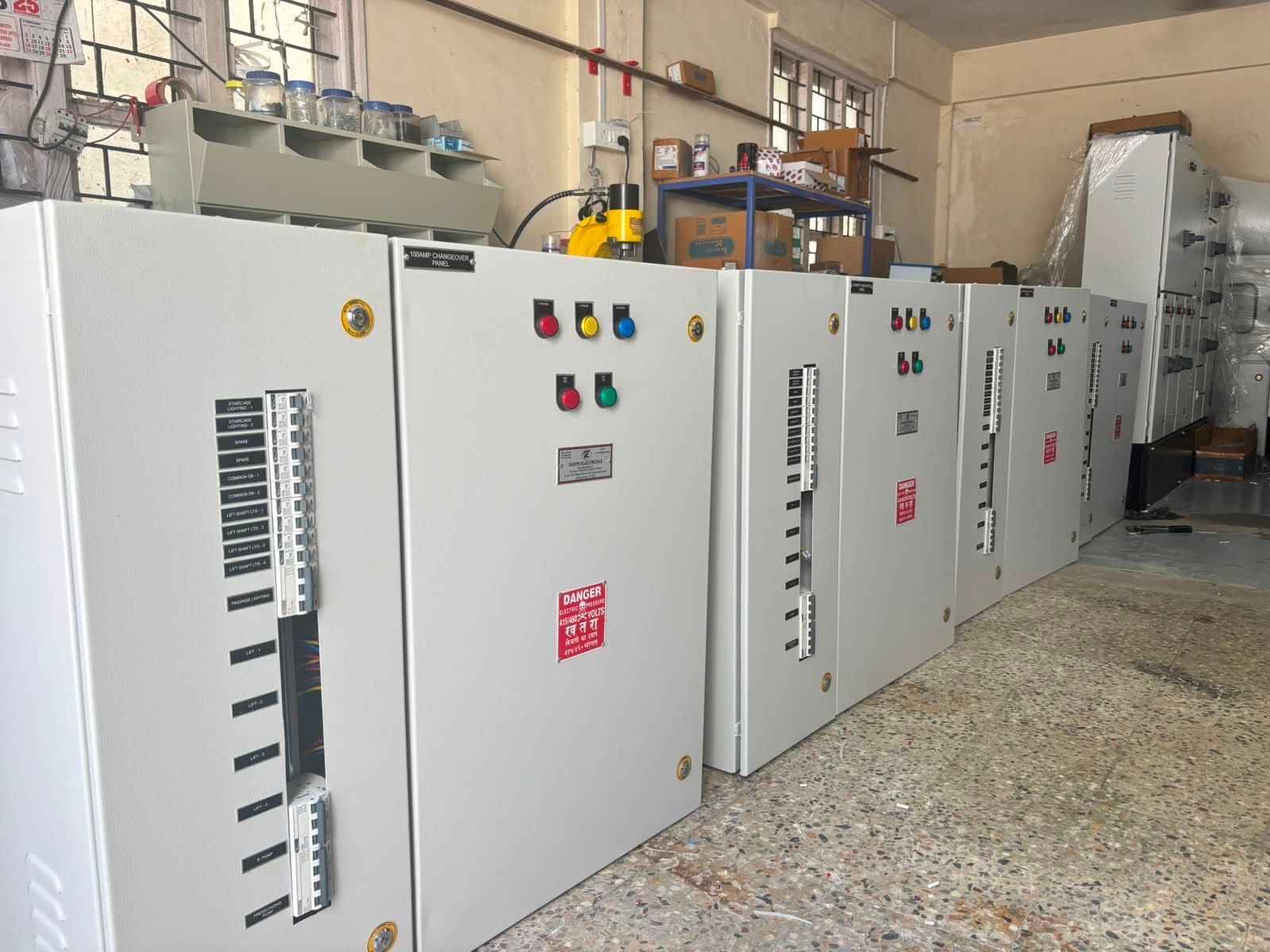

LT Distribution Panels by Voltex Electricals Pune POWER

LT Panel

Low Tension distribution panels for sub-distribution of power from main PCC to individual loads, machinery, and sub-circuits within a plant or building.

Up to 4000A MCCB / MCB Metering Bus-bar Chamber
Voltage Rating415V / 3Ph / 50Hz
Current RatingUp to 4000A
IncomerACB / MCCB with TMP release
OutgoingMCB / MCCB / Fuse switch units
MeteringVoltmeter, Ammeter, Energy Meter
EnclosureIP42 / IP54
StandardIS 8623 / IEC 61439
Enquire Now

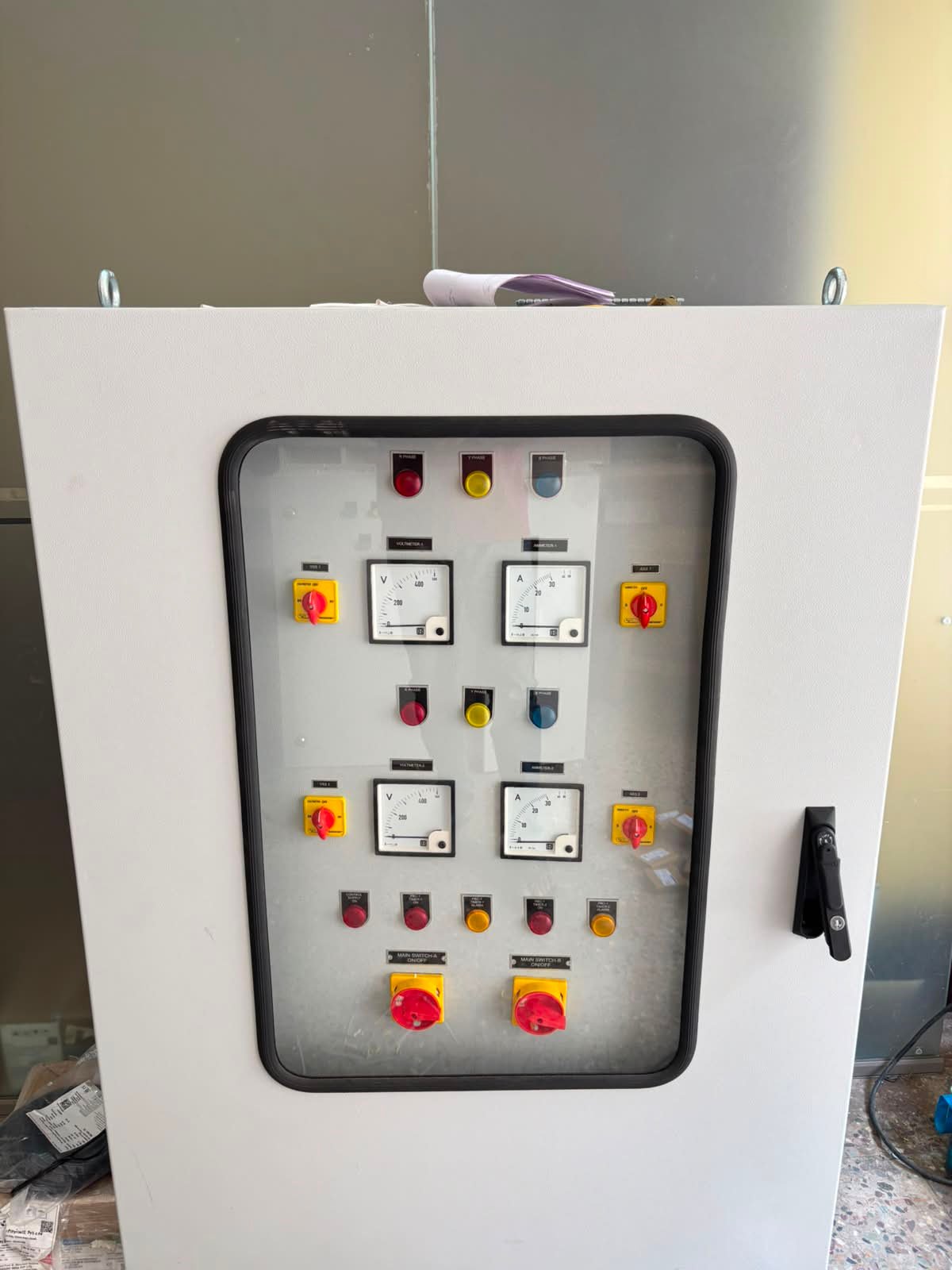

Relay Panel by Voltex Electricals Pune RELAY

Relay Panel

Relay Panel houses protection and control relays for monitoring, detecting faults, and initiating tripping or alarm signals in electrical systems. Used in substations, generator protection, motor protection, and process control applications. Designed for reliable operation with accurate fault detection and fast response times.

Protection Relays Overcurrent / Earth Fault Under / Overvoltage Trip / Alarm Output
Voltage Rating415V / 3Ph or 110V / 240V AC control
Relay TypesOvercurrent, Earth Fault, Differential, Under/Overvoltage
Relay MakeSchneider / Siemens / ABB / Selec / L&T
CT Input1A / 5A secondary
OutputTrip coil / Alarm / Indication contacts
AnnunciatorWindow type / LED / Digital (optional)
EnclosureIP42 / IP54, wall-mount / free-standing
StandardIEC 60255 / IS 3842
Enquire Now

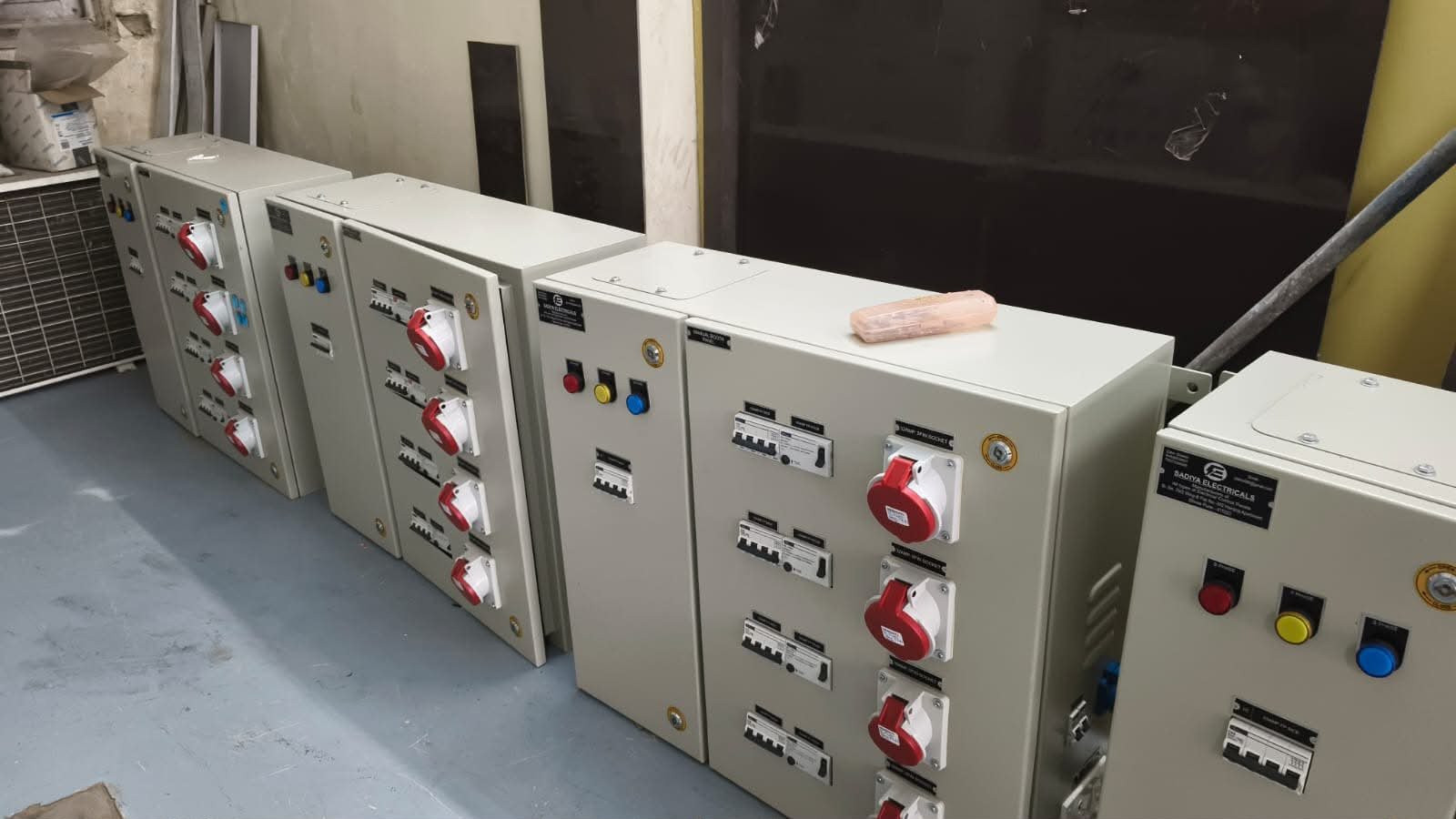

Socket Distribution Panel by Voltex Electricals Pune DISTRIBUTION

Socket Distribution Panel

Socket Distribution Panel provides multiple industrial-grade power outlets — 16A, 32A, and 63A — for construction sites, temporary power distribution, events, factories, and workshops. Each socket is individually protected with an MCB and housed in a robust powder-coated enclosure for safe and flexible power access.

16A / 32A / 63A Sockets Individual MCB Protection Site / Factory Use 3-Phase & Single Phase
Voltage Rating415V / 3Ph or 240V / 1Ph / 50Hz
Socket Types16A / 32A / 63A industrial plug sockets
No. of Sockets4 to 16 outlets per panel
IncomerTP MCCB / TP MCB
Protection per OutletIndividual MCB + RCCB (optional)
Socket MakeLegrand / Schneider / Clipsal
EnclosureMS powder coated, IP44 / IP55
MountingFloor-standing / Wall-mount / Skid
Enquire Now

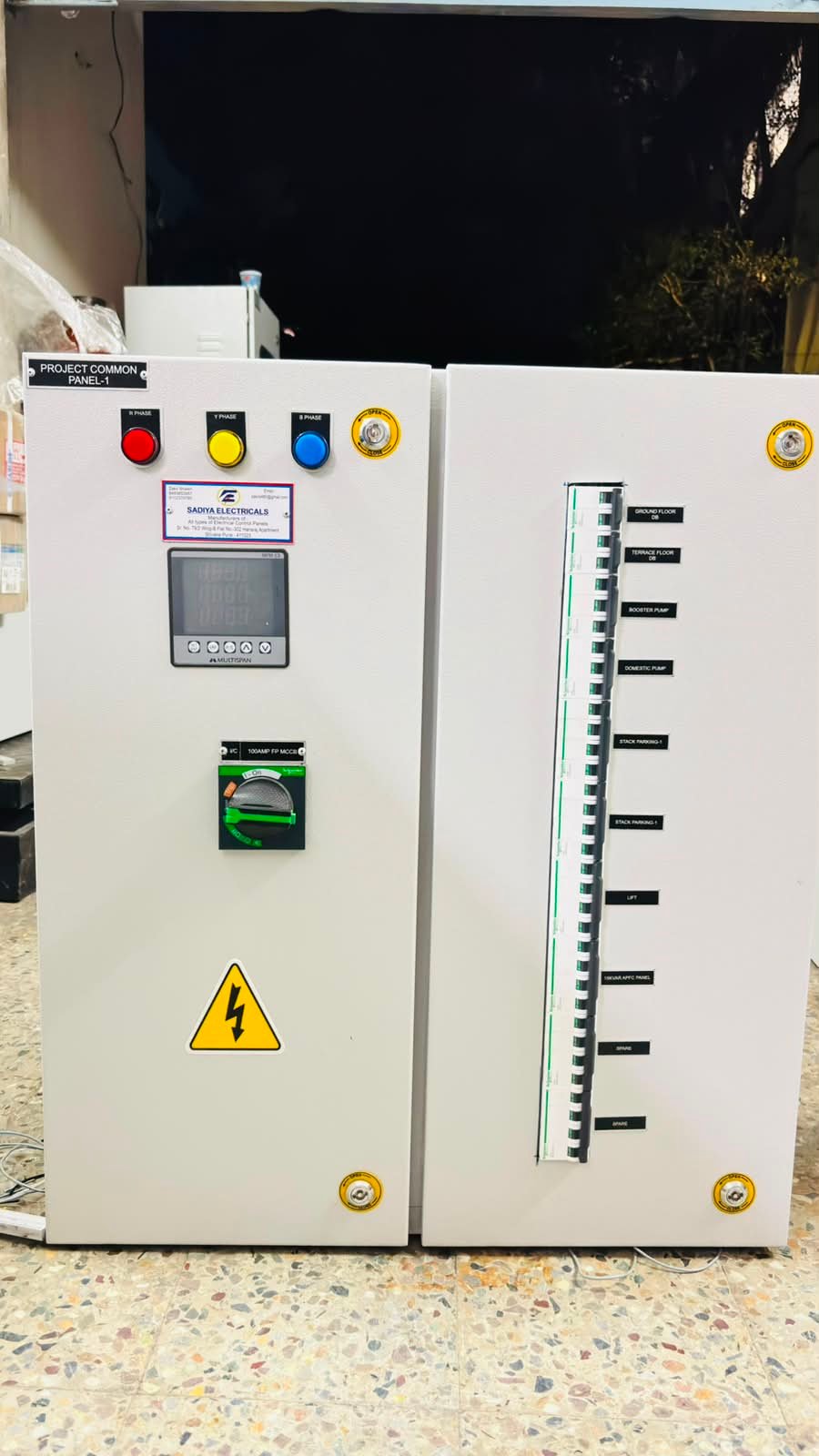

Project Common Distribution Board by Voltex Electricals Pune DISTRIBUTION

Power Distribution Board

Final distribution boards for commercial buildings, apartments, offices, and industrial sub-circuits. Available in surface-mount or flush-mount configurations with MCB/RCCB protection.

MCB / RCCB Surface / Flush Residential / Industrial DIN Rail Mount
Voltage Rating240V / 1Ph or 415V / 3Ph
Ways4 way to 48 way
IncomerDP / TP MCB / RCCB
ProtectionMCB + RCCB / RCBO combination
EnclosureMS / GI powder coated / GRP
MountingSurface / Flush / Pole
MakeLegrand / Hager / ABB / L&T
Enquire Now

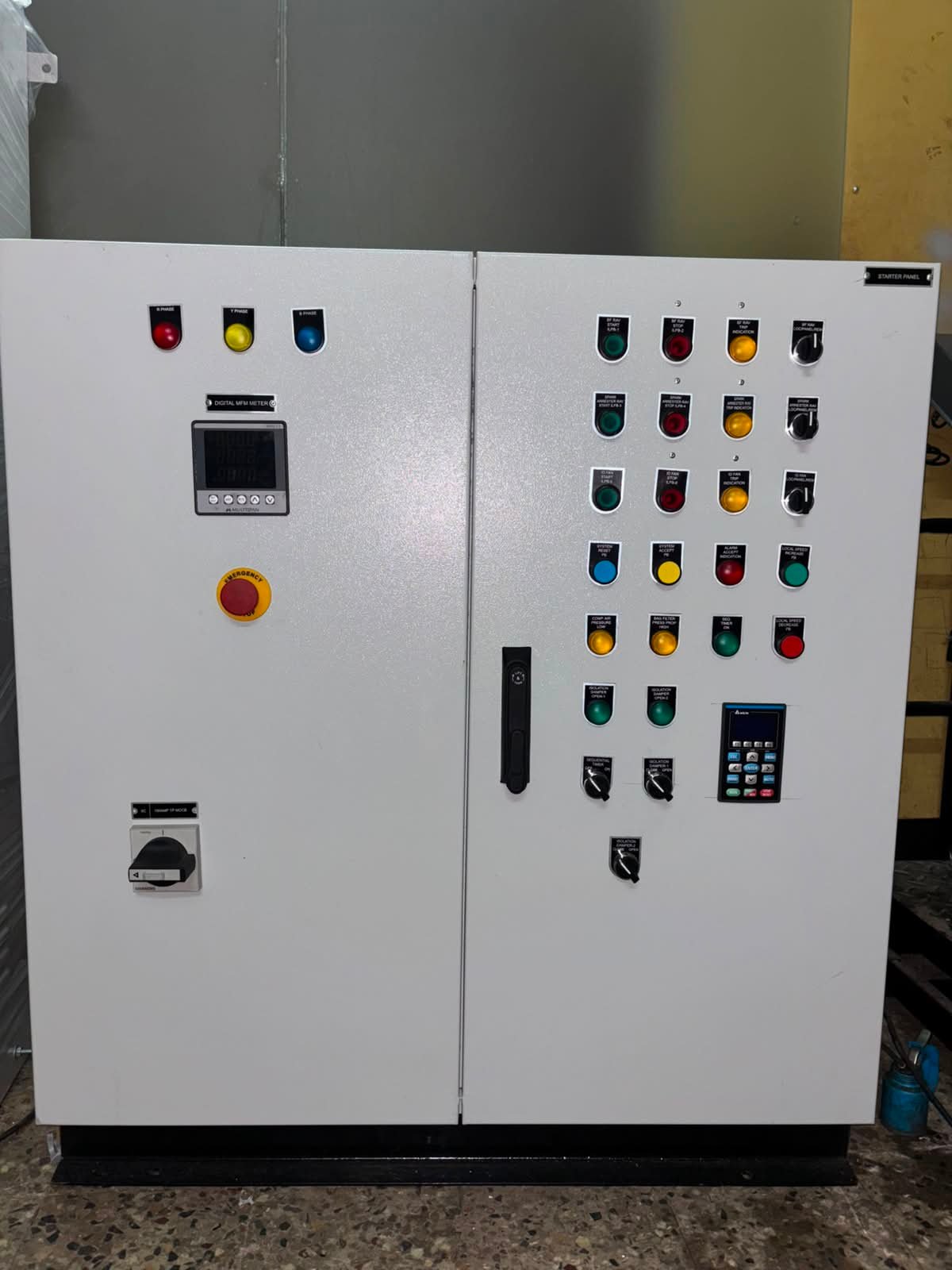

PMCC Panel - Voltex Electricals brand Pune PMCC

PMCC Panel

Power and Motor Control Centre combines power distribution (PCC) and motor control (MCC) in a single integrated panel — reducing footprint and cost for medium-sized plants.

Integrated PCC+MCC Space Saving Cost Effective Modular Design
Voltage Rating415V / 3Ph / 50Hz
Incomer RatingUp to 3200A ACB
Motor FeedersDOL / SD / Soft Starter / VFD
Bus SectionHorizontal + Vertical busbar
MeteringDigital multifunction meter
EnclosureIP42 (standard) / IP54 (optional)
StandardIEC 61439 Form 3b / Form 4
Enquire Now

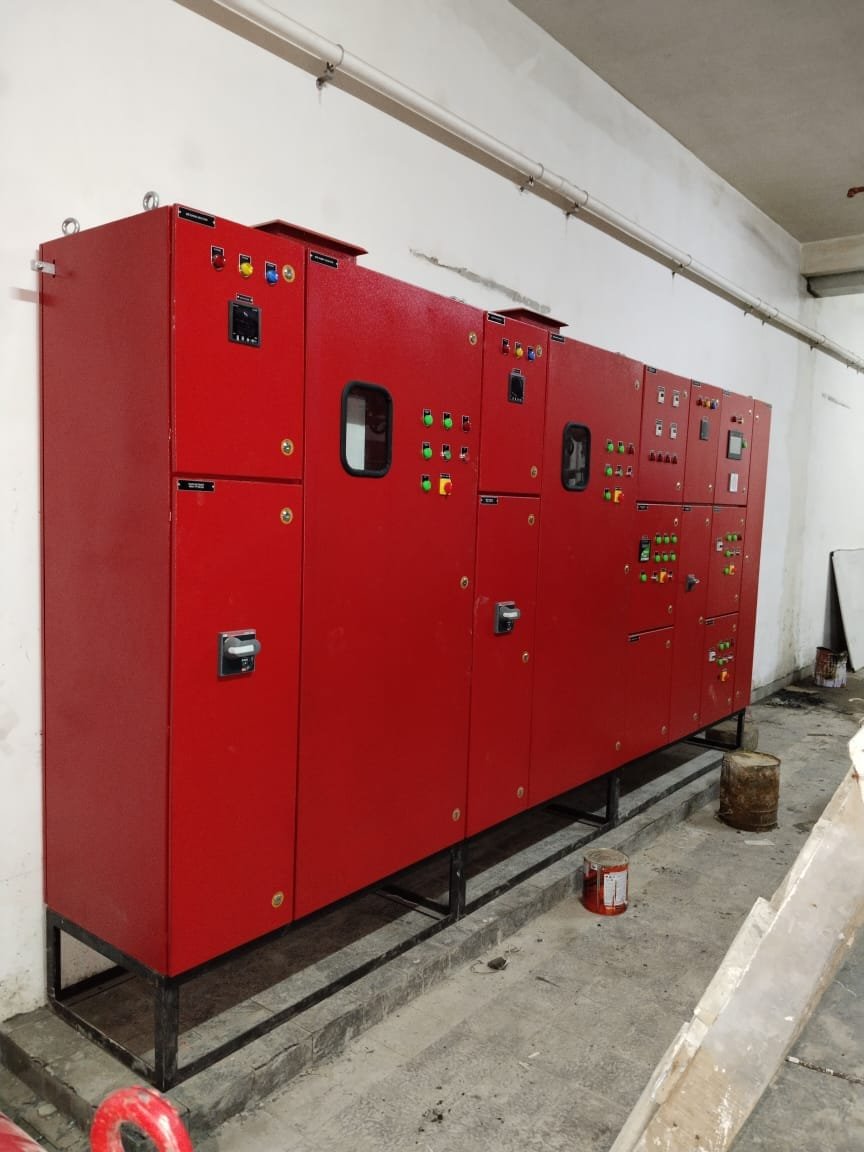

Fire Fighting Panel manufactured by Voltex Electricals Pune FIRE

Fire Panel

Fire Fighting Control Panel for automatic and manual control of fire hydrant pumps, jockey pumps, and sprinkler systems. Built to NBC and IS fire safety norms — painted in RAL 3000 red as per fire fighting standards. Ensures immediate pump start on pressure drop or manual trigger, with fault alarm and auto-changeover between duty and standby pumps.

RAL 3000 Red Duty / Standby Auto Jockey Pump Control NBC / IS Compliant
Voltage Rating415V / 3Ph / 50Hz
Pump CapacityUpto 200 HP per feeder
Starter TypeDOL / Star-Delta (as per pump HP)
OperationAuto (pressure switch) / Manual
ChangeoverAuto Duty–Standby with timer
IndicationRun / Trip / Fault / Mains ON lamps
Enclosure ColourRAL 3000 Fire Red (mandatory)
StandardNBC 2016 / IS 3034 / TAC norms
Enquire Now

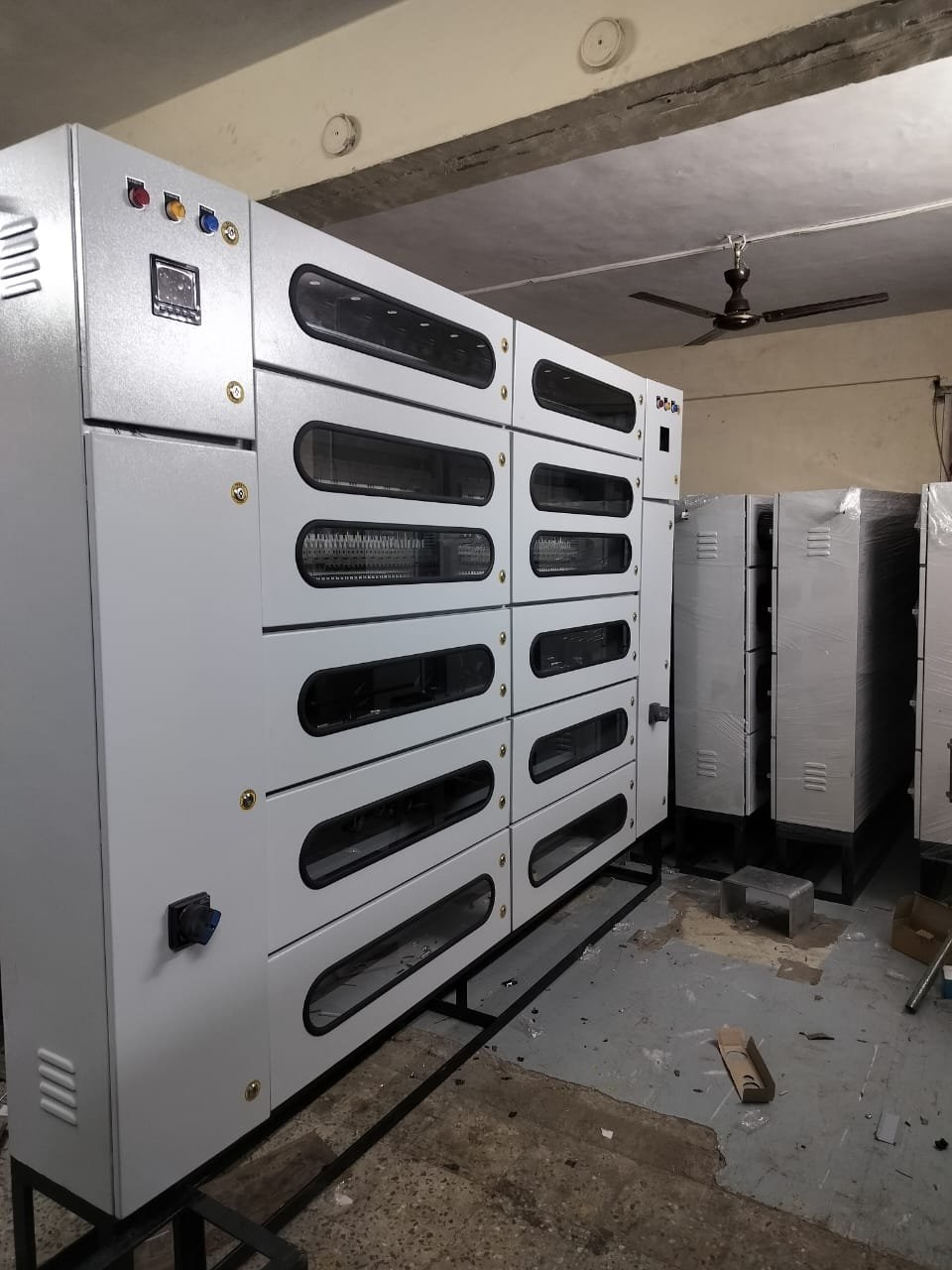

Multi-Tier Meter Panel manufactured by Voltex Electricals Pune METERING

Meter Panel

Multi-Tier Meter Panel houses multiple energy meters in withdrawable compartments with transparent oval windows for easy visual reading — without opening the panel. Designed for apartment complexes, commercial buildings, and group housing societies where individual tenant energy metering is required on a single common structure. MSEDCL and EESL compliant.

Multi-Tenant Metering Withdrawable Modules Transparent Windows MSEDCL Compliant
Voltage Rating240V / 1Ph or 415V / 3Ph / 50Hz
No. of Meters4 to 48 meters per panel
Meter TypeSingle phase / Three phase energy meters
Module TypeWithdrawable with inspection window
IncomerTP MCCB / SFU per tier
OutgoingDP MCB per tenant (individually protected)
EnclosureIP42 / IP54, powder-coated MS, MS frame
StandardIS 8623 / MSEDCL metering guidelines
Enquire Now

No panels in this category

Try selecting a different filter above.

Custom Requirements?

Can't Find What You Need?

We design and build custom panels to your exact specifications. Share your requirements and our engineers will respond within 24 hours.
